Why Outer-Product Beats Vendor Sparse Libraries by up to 198x for LLM Attention Sparsity

I benchmarked three sparse SpMSpM algorithms — inner-product, outer-product, and Gustavson's algorithm — against vendor-optimized libraries, namely cuSPARSE on NVIDIA T4 and rocSPARSE on AMD MI300x, using LLM-realistic top-k attention sparsity. The results surprised me: all three Triton implementations outperformed the vendor libraries in every test case, with the outer-product approach achieving up to a 198× speedup over rocSPARSE.

This post explains what I benchmarked, what I found, and — most importantly — why outer-product wins.

Background

Modern LLMs exhibit natural sparsity in their attention score matrices. After softmax, most attention weights are near-zero — only a small fraction of token pairs carry significant attention mass. This is the "heavy hitter" phenomenon observed by H2O, SnapKV, and StreamingLLM. Exploiting this sparsity requires efficient sparse matrix multiplication (SpMSpM) kernels.

The Zhang et al. analyse inner-product, outer-product, and Gustavson's algorithms for SpMSpM on hardware accelerators. My work extends this to GPU hardware using Triton and adds a direct comparison against vendor-optimised sparse libraries.

Experimental Setup

Hardware

Hardware	Architecture	Memory	Peak BW
NVIDIA T4	Turing, Tensor Cores	16GB GDDR6	300 GB/s
AMD MI300x	CDNA3, Matrix Cores	192GB HBM3	5,300 GB/s

Workloads

6 attention score matrix shapes from LLaMA 1-7B — Q×K^T and scores×V at sequence lengths 512, 1024, and 2048. Sparsity levels: 70%, 90%, 95% (top-k per row, LLM-realistic).

Algorithms

Algorithm	Strategy	Format
Vendor	cuSPARSE / rocSPARSE	CSR
Inner-product	C[i,j] = dot(A[i,:], B[:,j])	A: CSR, B: dense
Outer-product	C += Σ A[:,k] × B[k,:]	dense tiling + tl.dot
Gustavson	C[i,:] += A[i,k] * B[k,:]	A: CSR, B: dense

Results

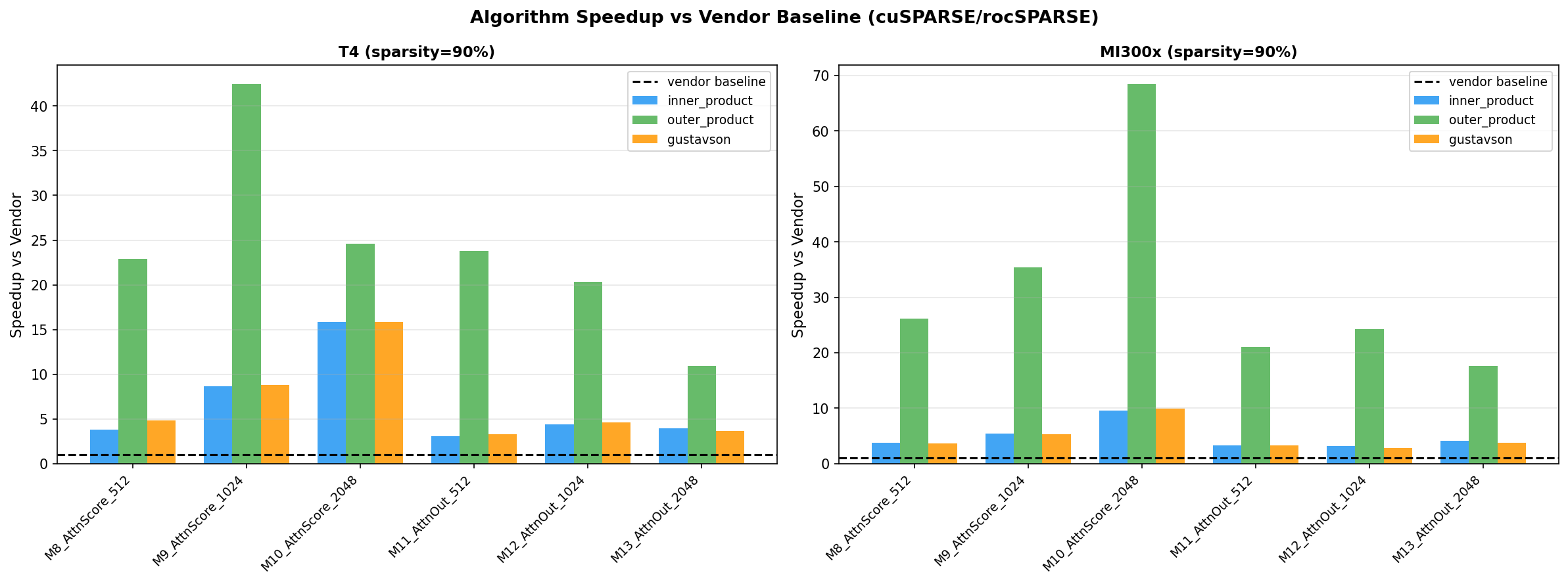

Algorithm comparison

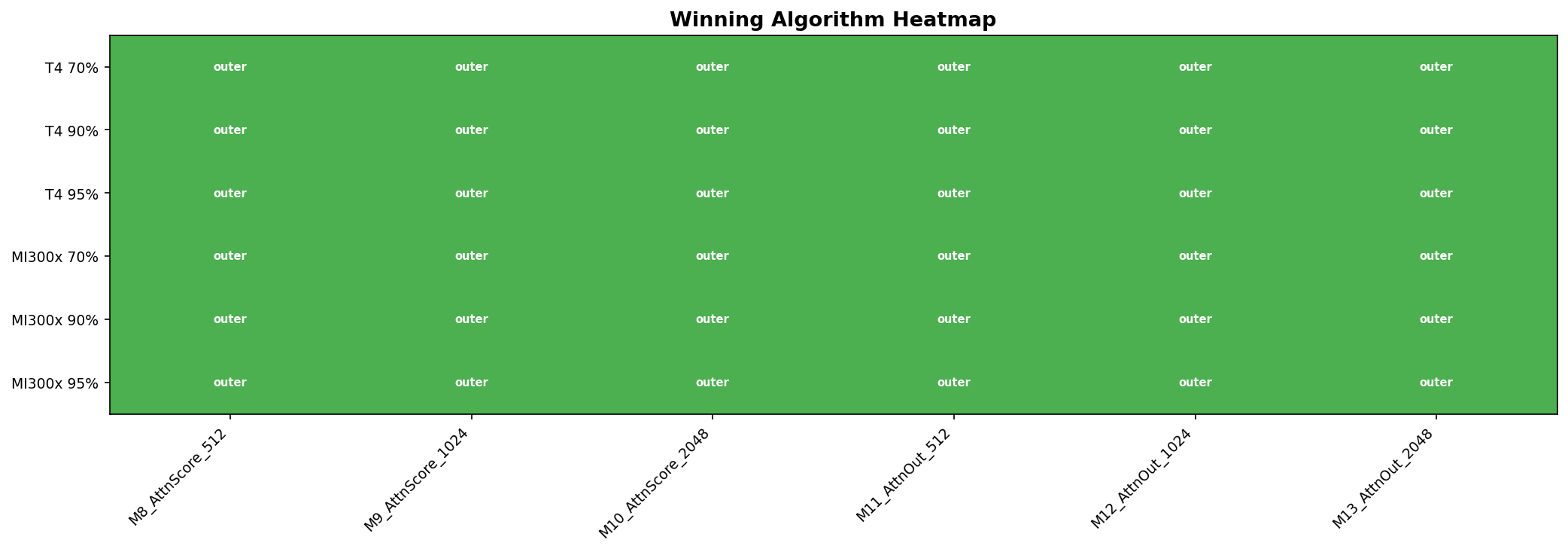

Sparsity sensitivity

Higher sparsity amplifies the advantage. At 70% sparsity, outer-product achieves a mean 73x speedup over vendor. At 95%, this narrows to 15x — still very significant.

Sparsity	T4 mean speedup	MI300x mean speedup
70%	73.5x	70.2x
90%	24.2x	32.1x
95%	15.3x	24.9x

GPU reverses the CPU algorithm ranking

The GAMMA paper found Gustavson outperforms inner-product on tensor accelerators. On GPU, the two are essentially identical — within 3% of each other on both T4 and MI300x. Outer-product dominates both on GPU.

Why Outer-Product Wins

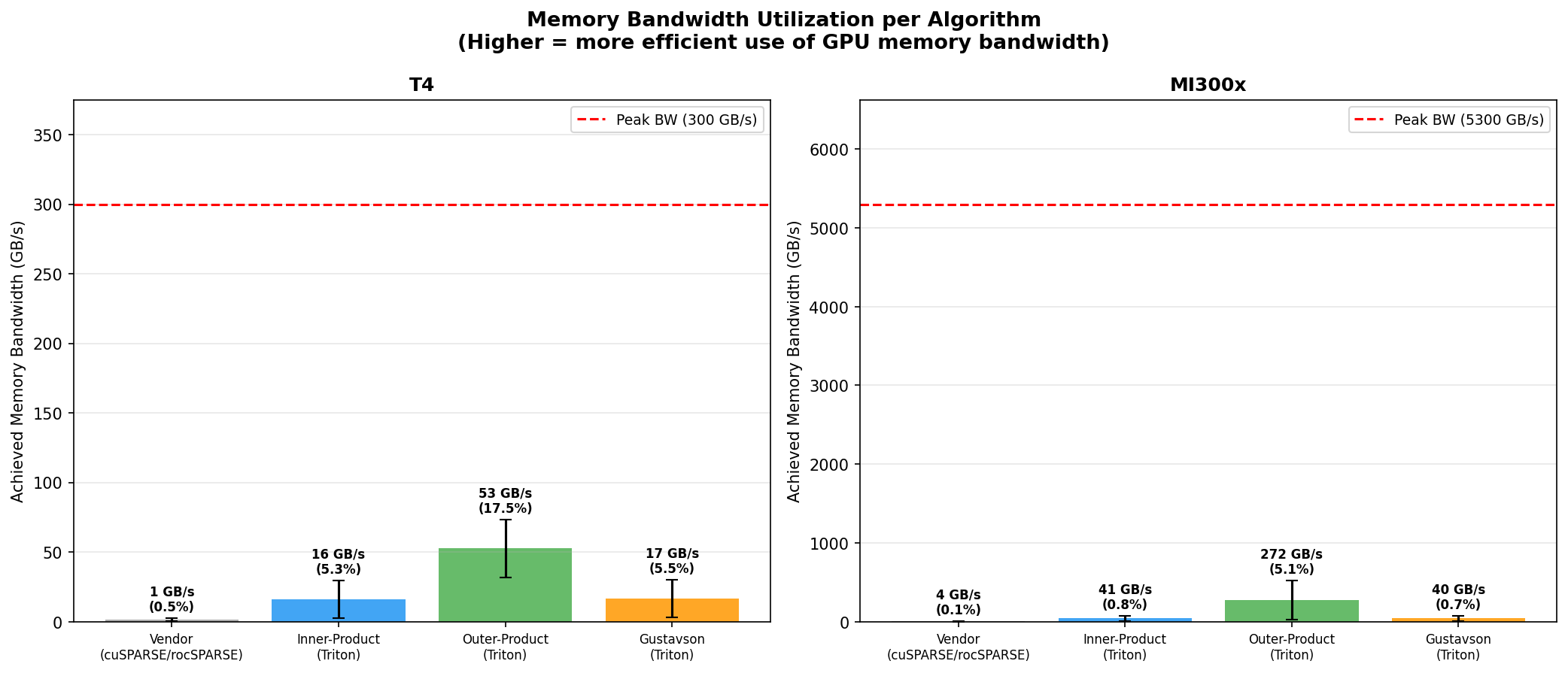

The performance gap is explained by memory bandwidth utilization. I measured achieved memory bandwidth for each algorithm:

Algorithm	T4 (300 GB/s peak)	MI300x (5300 GB/s peak)
outer_product	52.5 GB/s (17.5%)	272 GB/s (5.1%)
inner_product	16.0 GB/s (5.3%)	40.6 GB/s (0.8%)
gustavson	16.6 GB/s (5.5%)	39.6 GB/s (0.7%)
vendor	1.4 GB/s (0.5%)	3.6 GB/s (0.1%)

The reason is algorithmic. Outer-product processes the computation as:

C += sum_k outer(A[:,k], B[k,:])  # rank-1 updates via tl.dot()

This maps directly to tl.dot() in Triton, which compiles to Tensor Core (NVIDIA) or Matrix Core (AMD) operations. The memory access pattern is regular and coalesced — tiles of A and B are loaded sequentially, accumulated into the output.

Inner-product and Gustavson both require gather operations — loading specific rows of B indexed by sparse column indices of A. This produces scattered memory loads that cannot leverage Tensor Cores efficiently, resulting in 3x lower bandwidth utilization.

Vendor libraries (cuSPARSE/rocSPARSE) use CSR format and process only non-zeros — but cannot utilize Tensor Cores for sparse operations, achieving less than 1% of peak bandwidth.

MI300x: compute-bound, not memory-bound

On MI300x, outer-product achieves 272 GB/s against a 5,300 GB/s peak — only 5.1% utilization. This doesn't mean the kernel is inefficient. It means the kernel is compute-bound (Tensor Core limited), not memory-bound. MI300x's HBM3 bandwidth is so large that it feeds the Tensor Cores faster than they can consume data — the bottleneck shifts from memory to compute. This is why MI300x achieves even larger speedups than T4 for outer-product.

Dense Dataflow: a Separate Finding

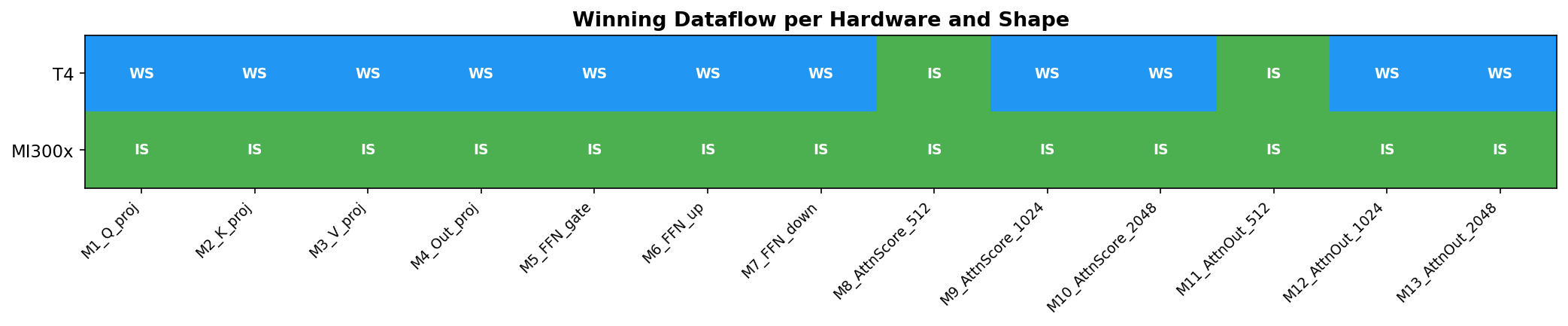

I also benchmarked Weight Stationary (WS), Input Stationary (IS), and Output Stationary (OS) dataflow strategies for dense matmul across 13 LLaMA 1-7B shapes.

Code

All kernels, benchmark scripts, results, and analysis are available at: github.com/midiareshadi/dataflow-bench

git clone https://github.com/midiareshadi/dataflow-bench.git
cd dataflow-bench
pip install torch triton pandas numpy matplotlib

# Dense dataflow benchmark
python3 dense/benchmark_t4.py

# Sparse SpMSpM benchmark
python3 sparse/benchmark_t4.py

# Bandwidth utilization analysis
python3 sparse/analysis/roofline.py

References

• Gamma: Leveraging Gustavson's Algorithm to Accelerate Sparse Matrix Multiplication: Zhang et al., ASPLOS 2021
• H2O: Heavy-Hitter Oracle for Efficient Generative Inference of Large Language Models: Zhang et al., 2023
• SnapKV: LLM Knows What You are Looking for Before Generation: Li et al., 2024
• StreamingLLM — Efficient streaming with attention sinks: Xiao et al., 2023
• Triton: github.com/openai/triton
